IM-RM Series
Rotary Displacement Gas Meters
IM-RM

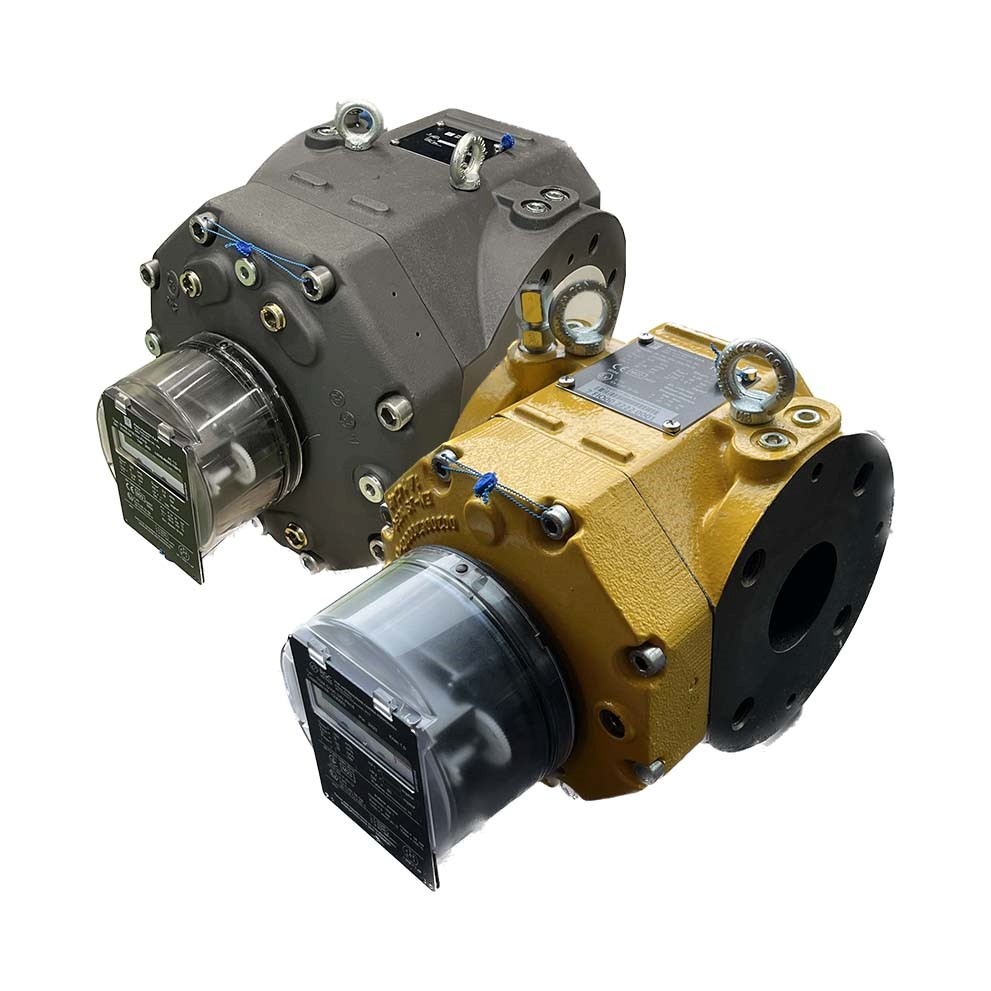

Approved for use in fiscal measurement, IM-RM is the Rotary Gas Meter by Pietro Fiorentini characterized by constant and repeatable accuracy. It is mainly used in high-pressure transmission systems and in medium and low pressure natural gas distribution networks.
It can be used with non-corrosive, filtered and dry gases, including specialty gases.
IM-RM is Hydrogen Ready for NG-H2 blending.
Features
- Body: hard anodized aluminum alloy or spheroidal graphite cast iron
- Connections: ANSI 150 according to ASME B16.5 or PN 16/25 according to EN 1092-1
- Working temperature: from -25 °C to +55 °C
- Nominal diameters: from DN 40 to DN 150 (from 1 1/2” to 6”)
- Minimum flow rate: 0.5 m3/h
- Maximum flow rate: 1000 m3/h
Datasheet Download
Datasheet
Download the datasheet for this product.
Flyer
Download the flyer for this product.
Technical Manual
Download the technical manual for this product.
Technical brochure
Download the technical brochure for this product.
Hydrogen compatibility declaration
Download the hydrogen compatibility declaration for this product.
