WAFER SERIES TURBINE FLOWMETERS
COMPACT, LIGHTWEIGHT & HIGH-ACCURACY FLOW MEASUREMENT
The Wafer Series Turbine Flowmeters provide accurate, reliable liquid flow measurement in a compact wafer-style design, making them ideal for industrial process monitoring, automation, and batching applications.

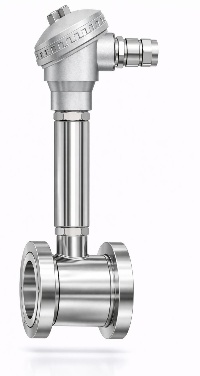

Wafer Series Turbine Flowmeters
COMPACT DESIGN. HIGH ACCURACY. SUPERIOR PERFORMANCE.
The Wafer Series Turbine Flowmeters are designed to deliver accurate, reliable, and repeatable liquid flow measurement in a compact wafer-style construction. Installed directly between pipeline flanges, they minimize installation space while maintaining excellent measurement performance. Manufactured with precision turbine technology and high-quality stainless steel wetted parts, the Wafer Series provides high accuracy, low pressure drop, and long service life. Compatible with pulse, analogue, and digital output options, these flowmeters integrate seamlessly with PLC, DCS, SCADA, and industrial automation systems, making them ideal for process monitoring, batching, utility management, and flow control across a wide range of industries.
CHARACTERISTICS
- Measuring range: 0.2 to 550 M3/Hr
- Media temperature: -40 … 150 °C
- Maximum pressure: …250 bar
Key Features
- Compact wafer construction for limited installation space
- High accuracy (±0.5% to ±1% of reading)
- Excellent repeatability (±0.05%)
- Low pressure drops
- Wide flow range 10:1, 20:1
- Robust SS 316
- High pressure and temperature capability
- Local flow indicator / transmitter options
- Pulse, 4–20 mA, RS 485 digital output
- Easy integration with PLC, DCS & SCADA

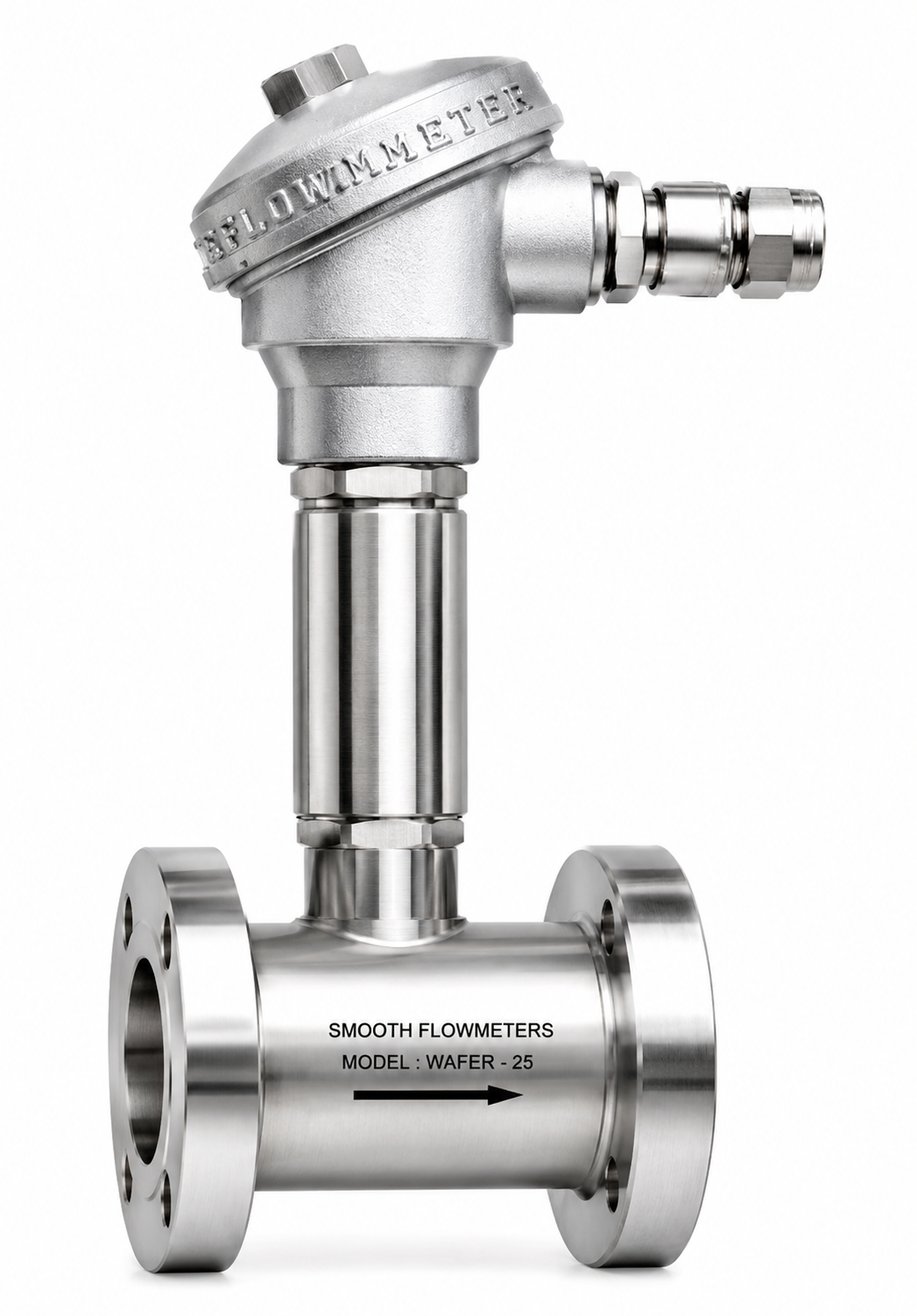

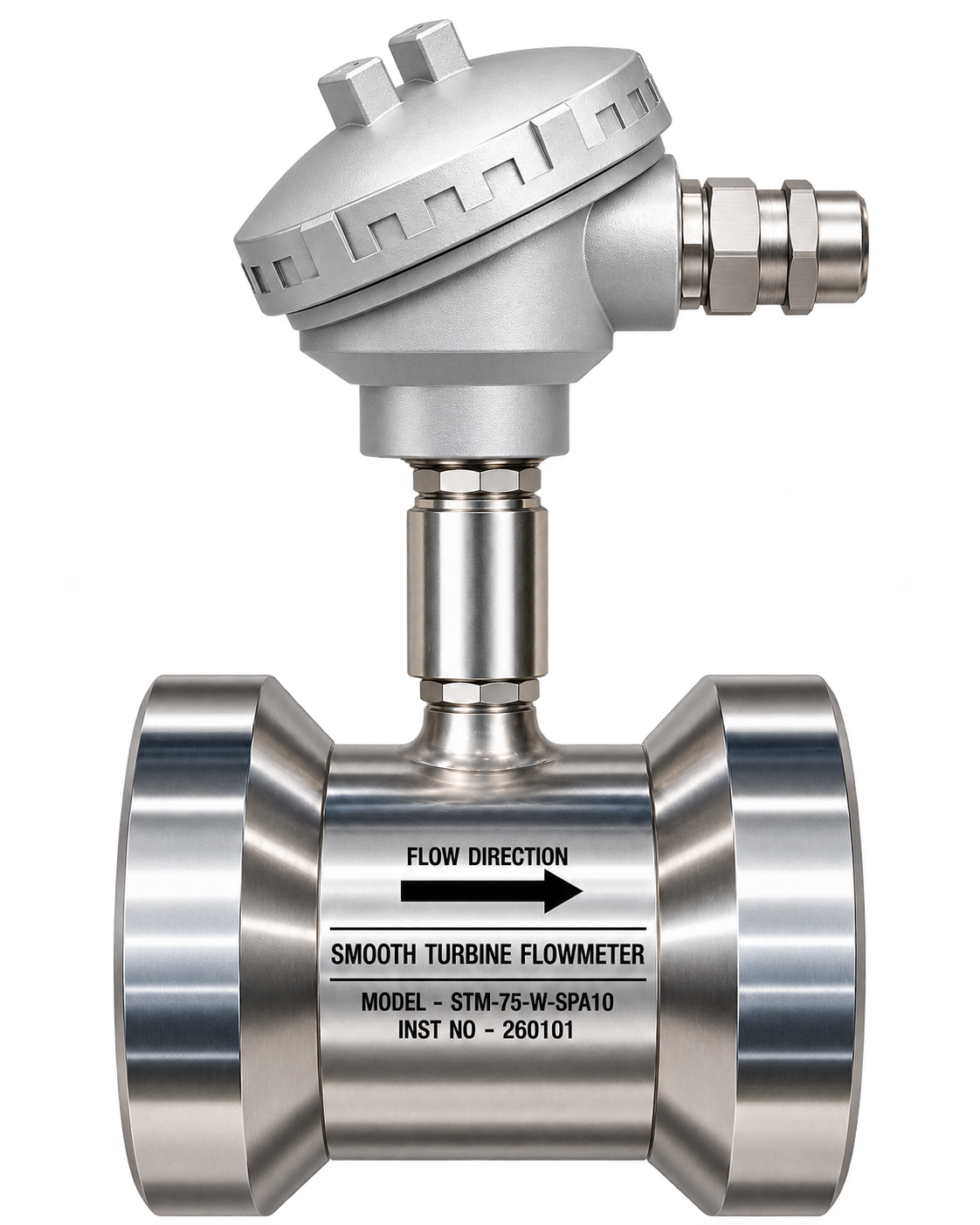

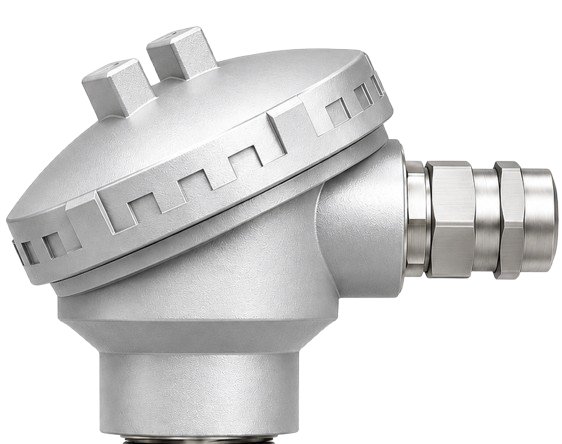

Wafer Series Turbine Flowmeter with Pulse Output
COMPACT, HIGH-ACCURACY FLOW MEASUREMENT WITH RELIABLE PULSE SIGNAL OUTPUT
The Wafer Series Turbine Flowmeter with Pulse Output provides accurate liquid flow measurement with reliable pulse signal transmission for industrial automation, batching, and process monitoring.
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

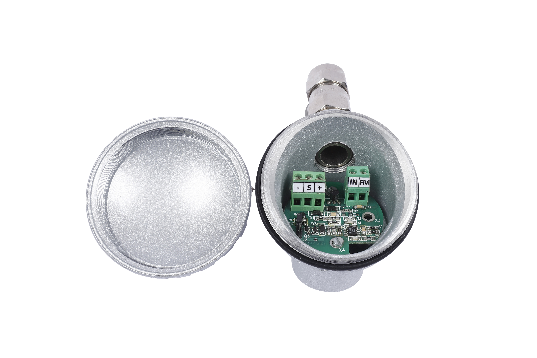

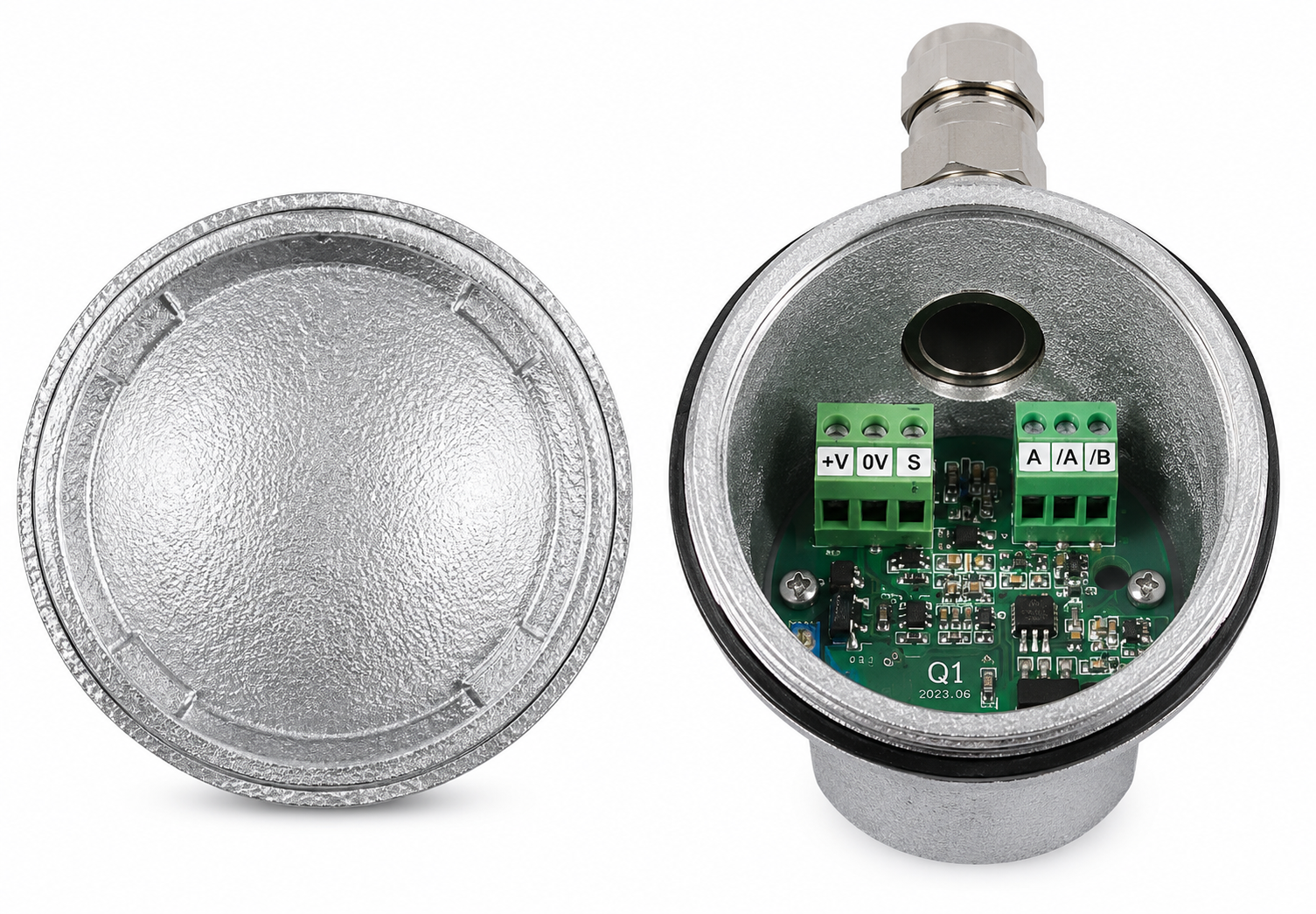

Pulse Transmitter
- Model – SPA – 10, SPA 100, SPA-1000
- SPA-10 – 2 Wire, 3 Wire PNP Pulse
- SPA-100 – Dual PNP Pulse
- SPA – 1000 - Dual PNP Pulse
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

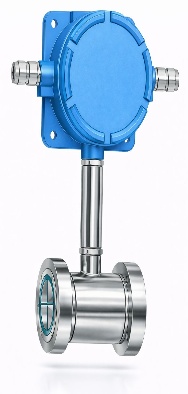

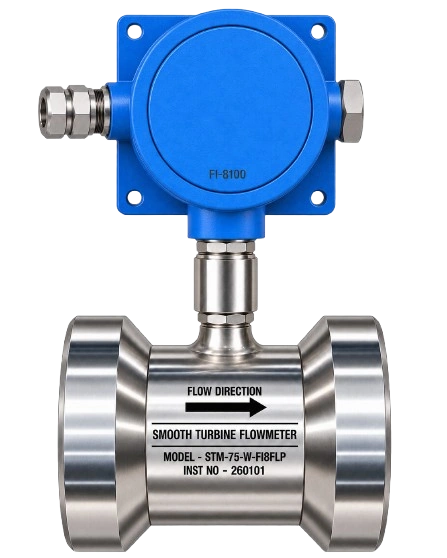

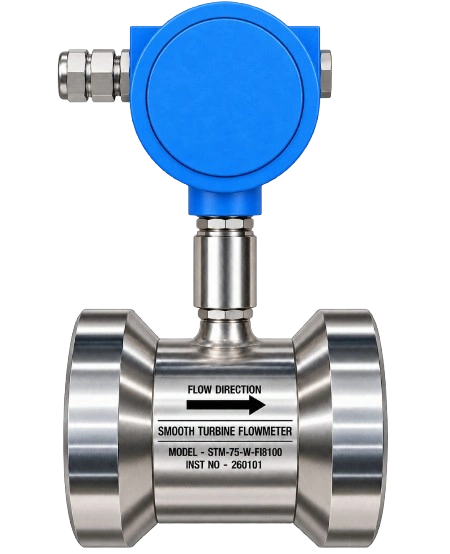

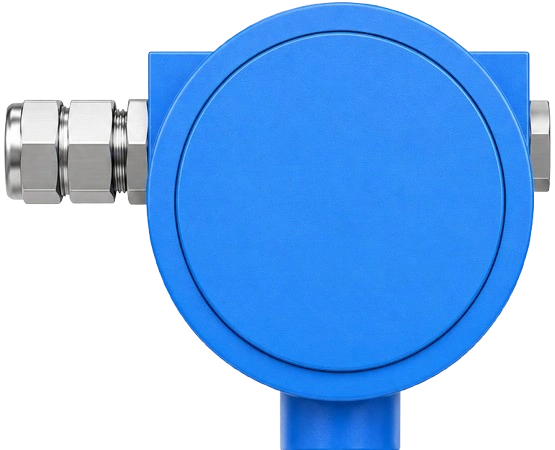

Wafer Series Turbine Flowmeter with Analogue Output
COMPACT, HIGH-ACCURACY FLOW MEASUREMENT WITH CONTINUOUS 4–20 MA ANALOG OUTPUT
The Wafer Series Turbine Flowmeter with 4–20 mA Analogue Output provides compact, accurate liquid flow measurement with reliable analog signal transmission for industrial automation and process control.
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

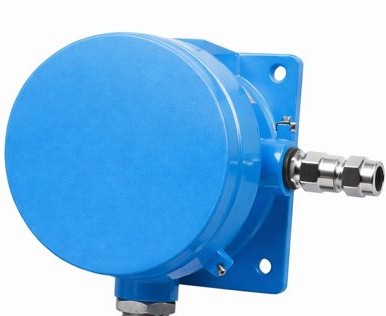

FI Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

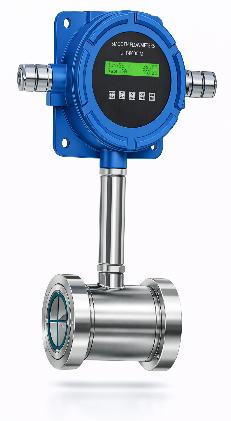

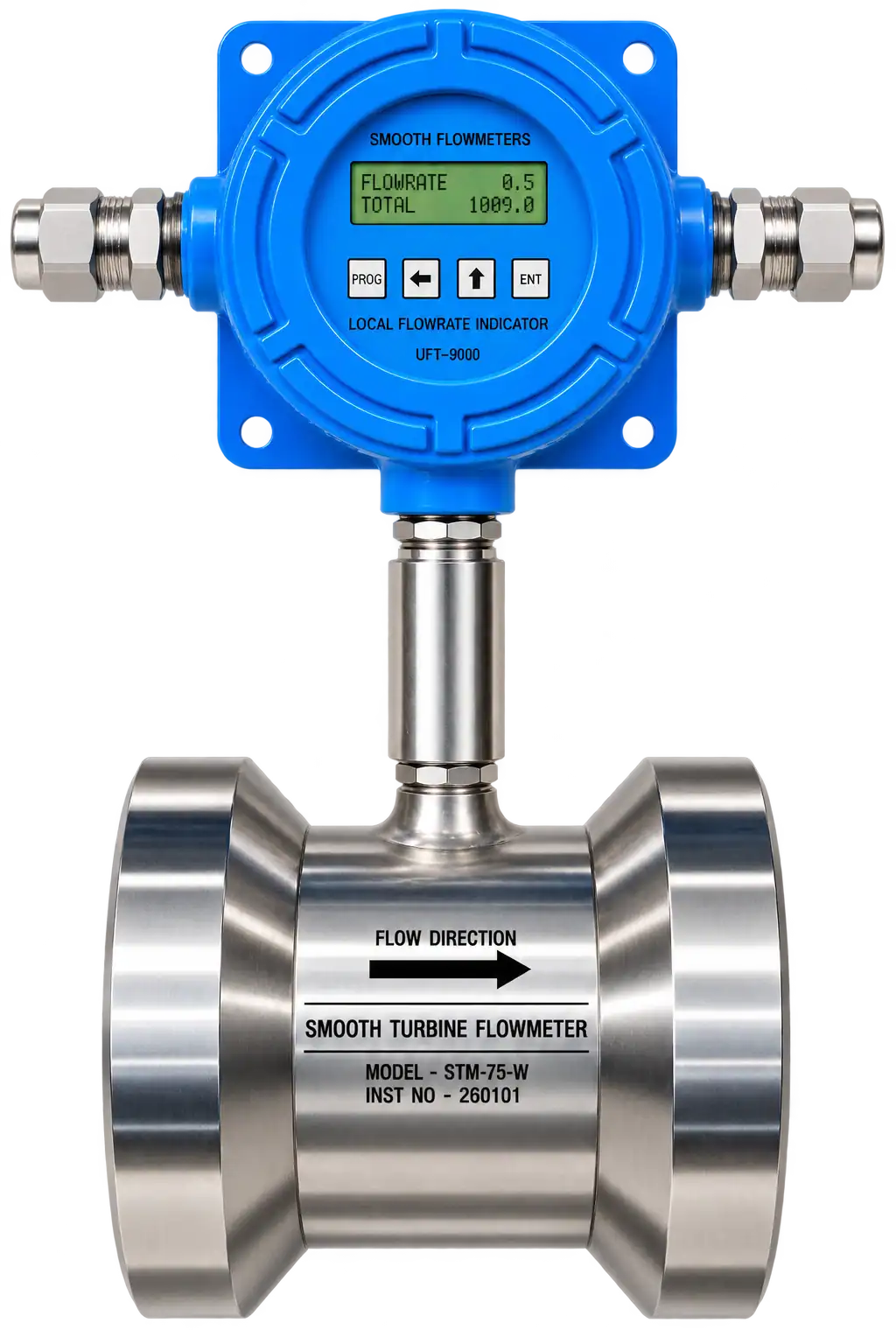

Wafer with Meter Mounted Battery-Operated Flow Indicator
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

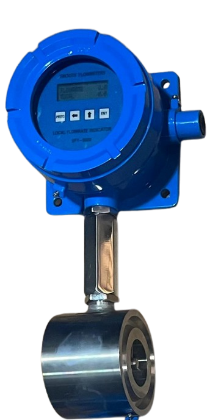

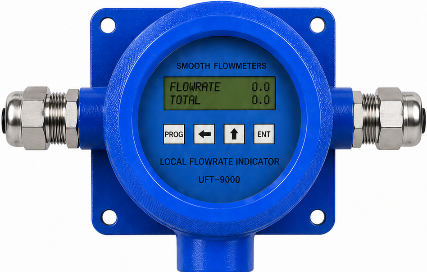

Meter Mounted Display Unit
- Model – UFT 9000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC & Battery Operated

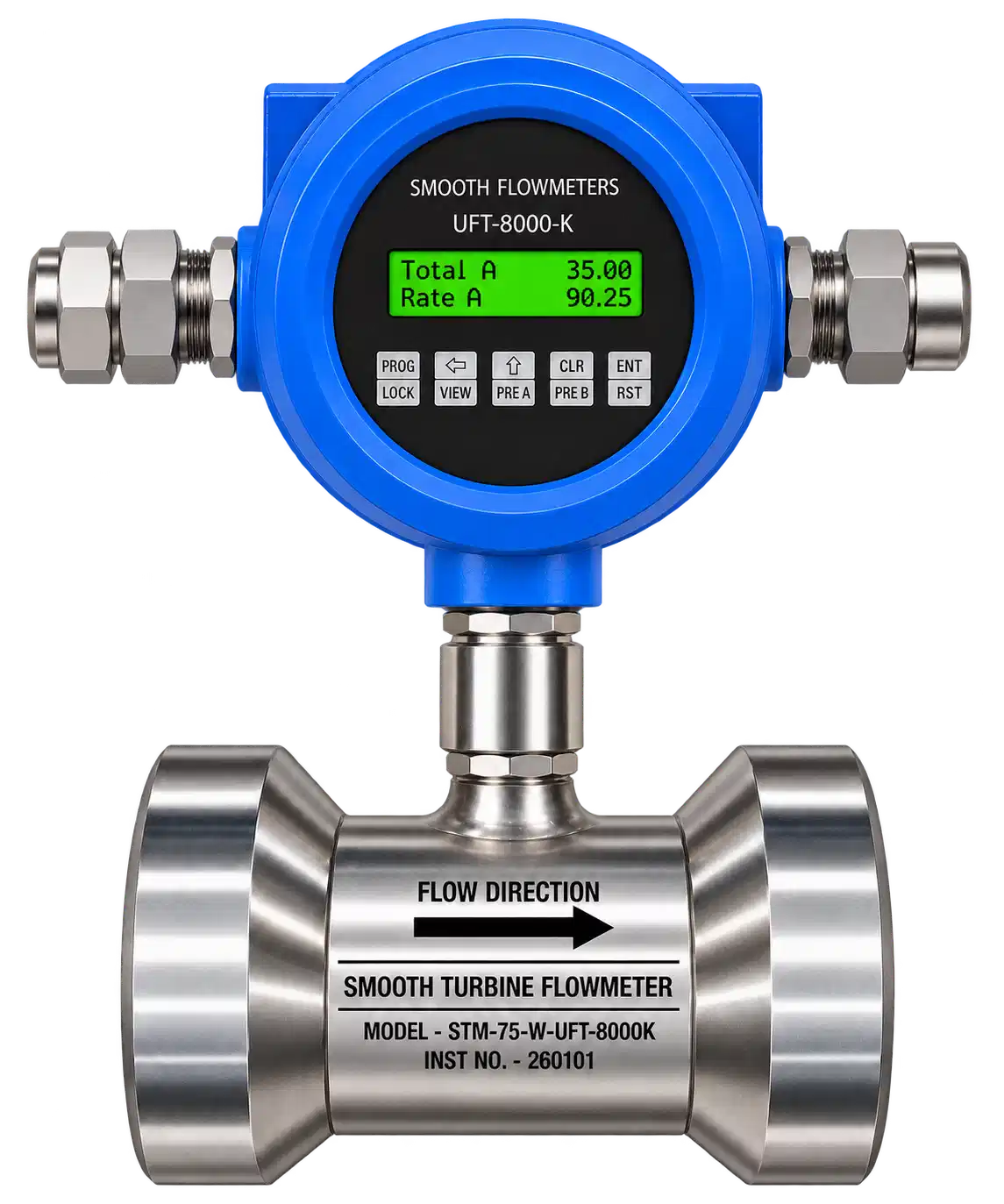

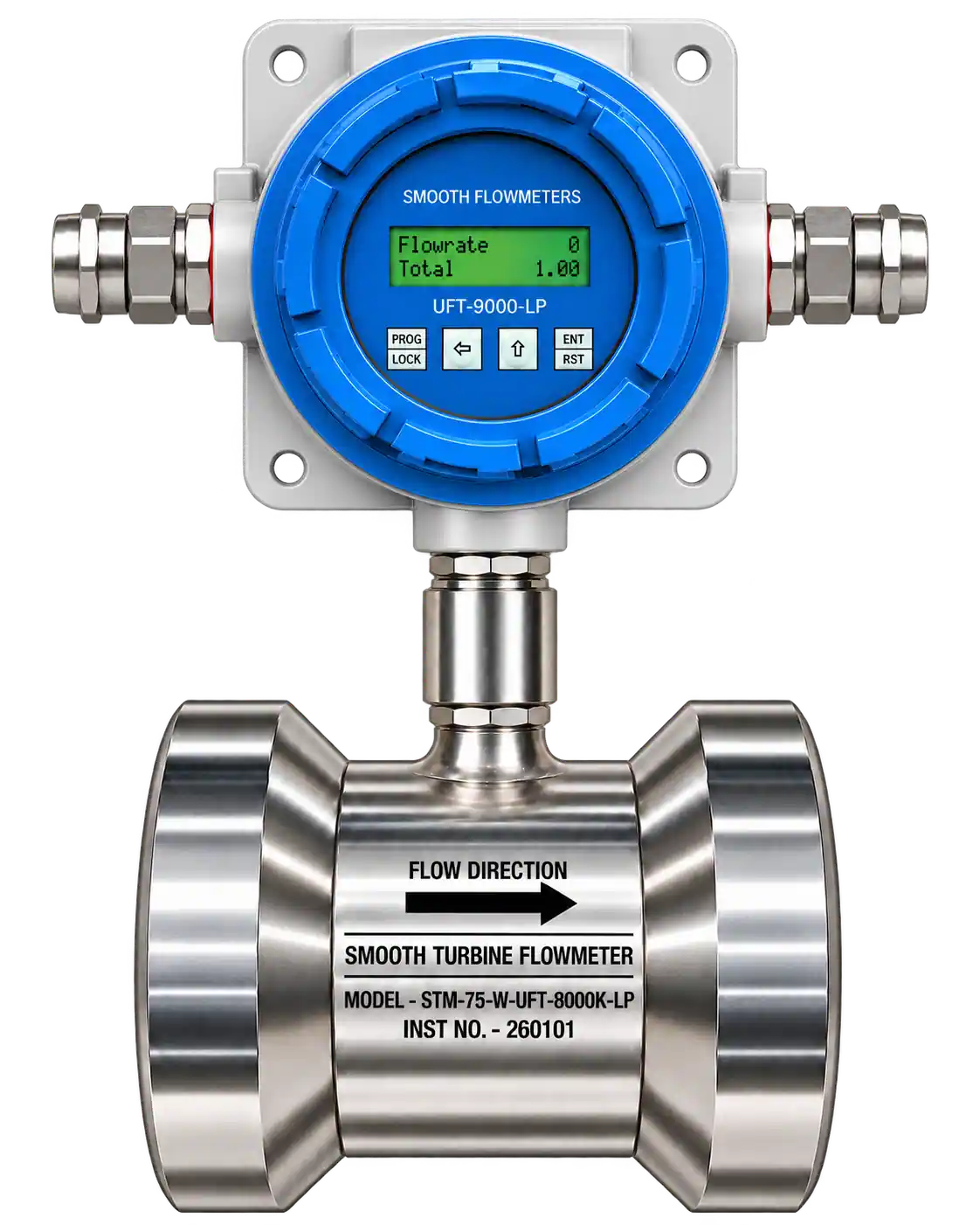

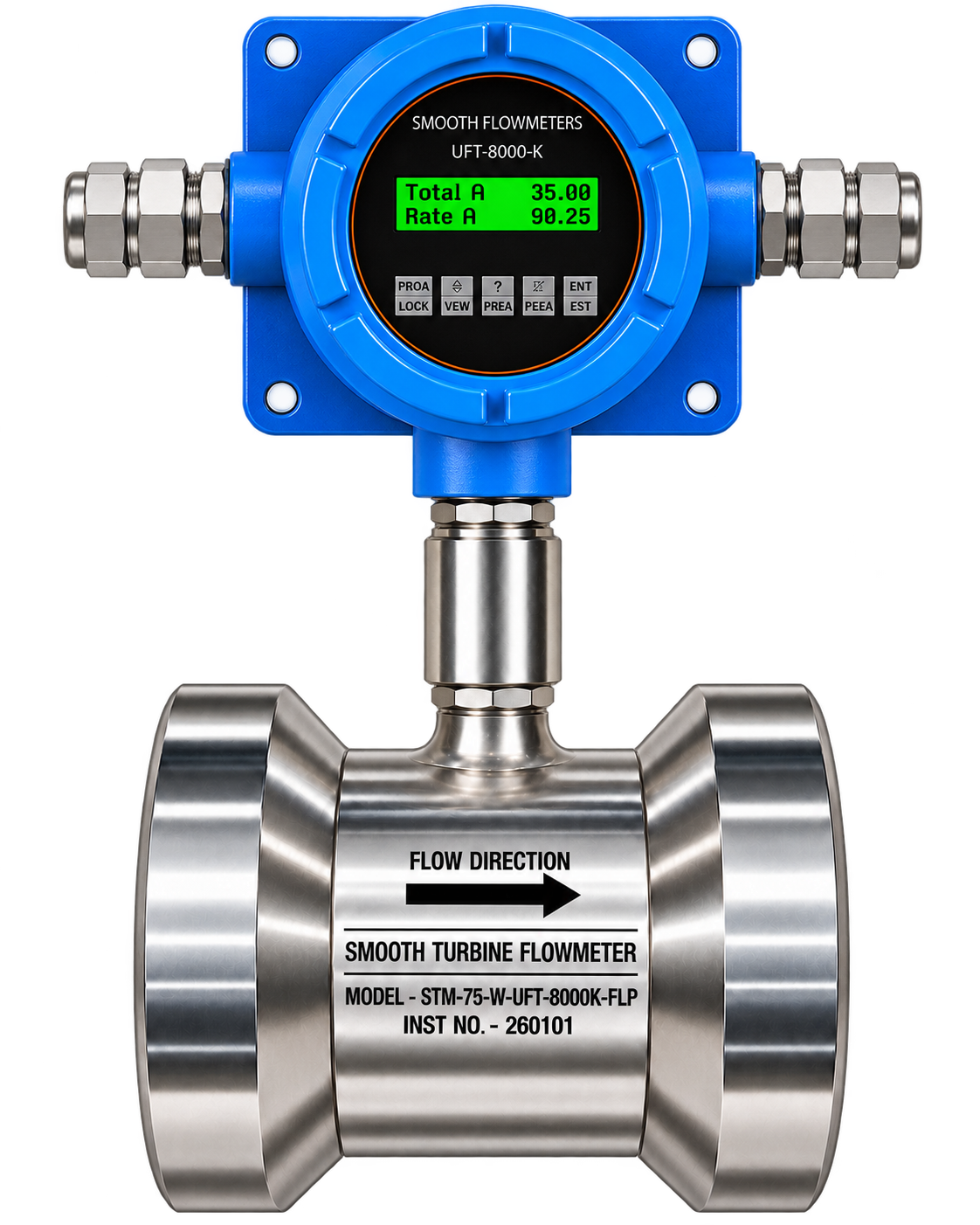

Wafer with Meter Mounted Flow Indicator 24VDC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

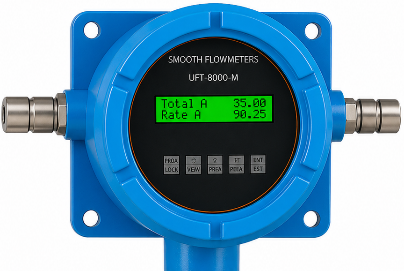

Meter Mounted Display Unit
- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC
Wafer with Panel / Wall Mounted Flow Indicator 230VAC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

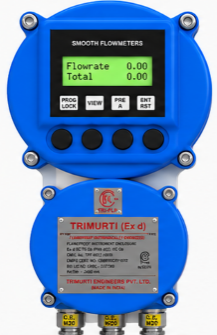

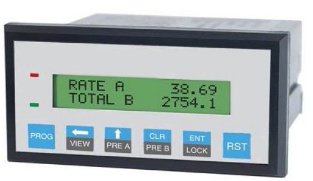

Panel / Wall Mounted Display Unit
- Model – FRT 7000 / UFT 8000-P
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 232
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 230 VAC or 24 VDC
Datasheet Download
Download the product datasheet for technical specifications.
WAFER SERIES TURBINE FLOWMETERS Datasheet
Download the datasheet for this product.
Industry-wise Applications
- • Milk, juice, soft drinks, edible oil, and syrup transfer
- • Accurate batching and flavor dosing
- • Hygienic construction to prevent product contamination
- • Smooth, easy-to-clean sanitary flow paths
- • Purified Water (PW) and Water for Injection (WFI)
- • Liquid medicines and solvent measurement
- • Strict compliance with international hygiene standards
- • Full compatibility with CIP and SIP cleaning processes
- • Nutrient media flow and buffer solutions
- • Fermentation process liquids monitoring
- • Gentle flow measurement without product degradation
- • High-precision sterile operation environment
- • Raw milk collection and high-speed processing lines
- • Cream, whey, and yogurt lines measurement
- • Supports automated batching controls
- • High resistance to aggressive chemical wash cycles
- • Liquid soaps, shampoos, and conditioners dosing
- • Low-viscosity lotions and creams filling lines
- • Smooth internal finish to prevent product residue
- • Extremely consistent dosing and filling accuracy
- • High-purity alcohols and clean solvents measurement
- • Specialty chemical flow monitoring in batch plants
- • Highly accurate measurement of low-viscosity liquids
- • Corrosion-resistant SS316/SS316L body construction
- • Brewing water, wort transfer, and alcohol measurement
- • Extremely high accuracy for production consistency
- • Simple, thorough cleaning between production batches
- • Compact design suitable for modern modular skids
Common Construction Options
Common Construction Options
- Body materials: SS316
- Connections: Wafer Type
- Rotor – ANC 21, Duplex SS
- Bush – TC & SS Ball Bearing
- Shaft - TC & Duplex SS
- Pick Off Sensor – Magnetic and Hall Sensor
- Outputs: Pulse, 4–20 mA, Modbus, Display-integrated or Remote
- Sizes: From ¾” to 6” (and higher for special designs)
Selection Tips
- Fluid type & viscosity
- Flow range (min/max)
- Operating pressure & temperature
- Required accuracy
- Output signal / integration needs
Advantages of Wafer Turbine Flowmeters
- Compact wafer-type design for easy installation
- High accuracy flow measurement
- Low pressure drop across the meter
- Suitable for clean and low-viscosity liquids
- Durable construction for industrial environments
- Fast response for dynamic flow conditions
